Fiber Bundles for Transmitting Pictures

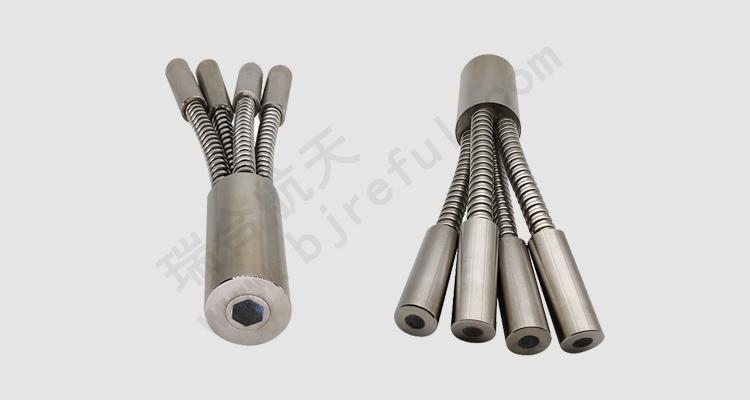

     Fiber Bundles for Transmitting Pictures is a passive device that can be bent at will to transmit- images, consisting of multiple optical fibers arranged in a regular bundle, each fiber is an image element, able to transmit information independently, no crosstalk between each other, compared with traditional optical imaging devices, has the advantages of light weight, easy to use, easy to carry, thus in the medical, military, aerospace, scientific research and other fields have applications, especially its radiation resistance, corrosion resistance, anti-electromagnetic interference, in some special applications are irreplaceable.



Fiber Bundles for Transmitting Pictures to find Reful

     Complete           variety
      Reliable             quality
 Professional           team
On time

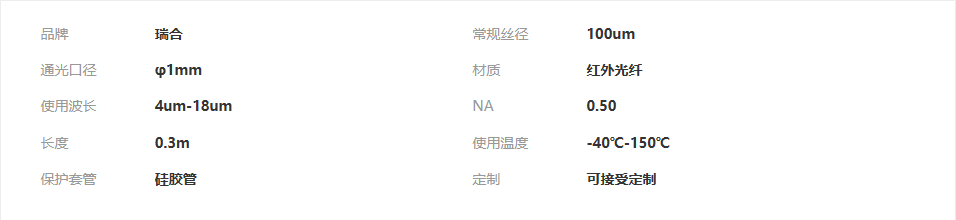

                   Product parameters



Product parameters

Technical specifications

Product parameters

Technical specifications



Alignment



Square, hexagonal, round



Fiber diameter



≥30um



Fiber material



Glass



Overall transmittance



>56%@1m



Probe temperature resistance



-40℃-400℃



Minimum bending

radius



>10mm



Fiber length



0.2m-4m



Beam transfer pattern



Bendable



Applicable bands



380-1100nm



Optical fiber numerical aperture



0.54/0.64

Broken fiber, dark

fiber rate



1%



Resolution



14Line Pairs/mm



Device radiation resistance



≤9*104rad(Si)



Air leakage degree



≤1.7*10-7Pa.m3/S

Vibration resistant

frequency range

0-2000(Hz)



Three-way sine15.8g



Electromagnetic interference



Unaffected

Product characteristics
Light conduction

Selection of high quality infrared fiber production, near infrared to mid-infrared have excellent light performance.


Energy transfer

High quality end grinding for high power infrared transmission escort.
Image transmission

Flexible structure, through the harsh conditions, see the human eye can not see, see the human eye can not reach.


Product shooting
